This page contains answers to common questions handled by our support staff, along with some tips and tricks that we have found useful and presented here as questions.

1. How do I know if my engine is Commander or Champion?
2. Where can I find the engine block number?
3. Where do fuel lines go?
4. What do I need to do to remove the body from the Chassis?
5. What is the correct heads for the R2 Avanti?
6. What are all the decals for the Avanti and their location?

How do I know if my engine is Commander or Champion ?

The easy way to tell if you have a Commander or Champion 6 cylinder engine is by the manifold.  If you have a two-piece manifold you have a Flathead Commander 'Big 6' engine.  If you have a one-piece then it is a Champion Flat head 6 cylinder

Back to Top

Where can I find the engine block number ?

On the 6 cylinders the engine number for identification purposes is located at the front left upper section on the block.  Right under the head.

On the V8 engines (back to 1955) the number for identification purposes is located on the left forward most part of the block (right forward of the valley cover) and the machined area has the engine number.  The raised numbers are casting numbers and do not tell you the engine number.

Back to Top

Where do the fuel lines go on the Avanti ?

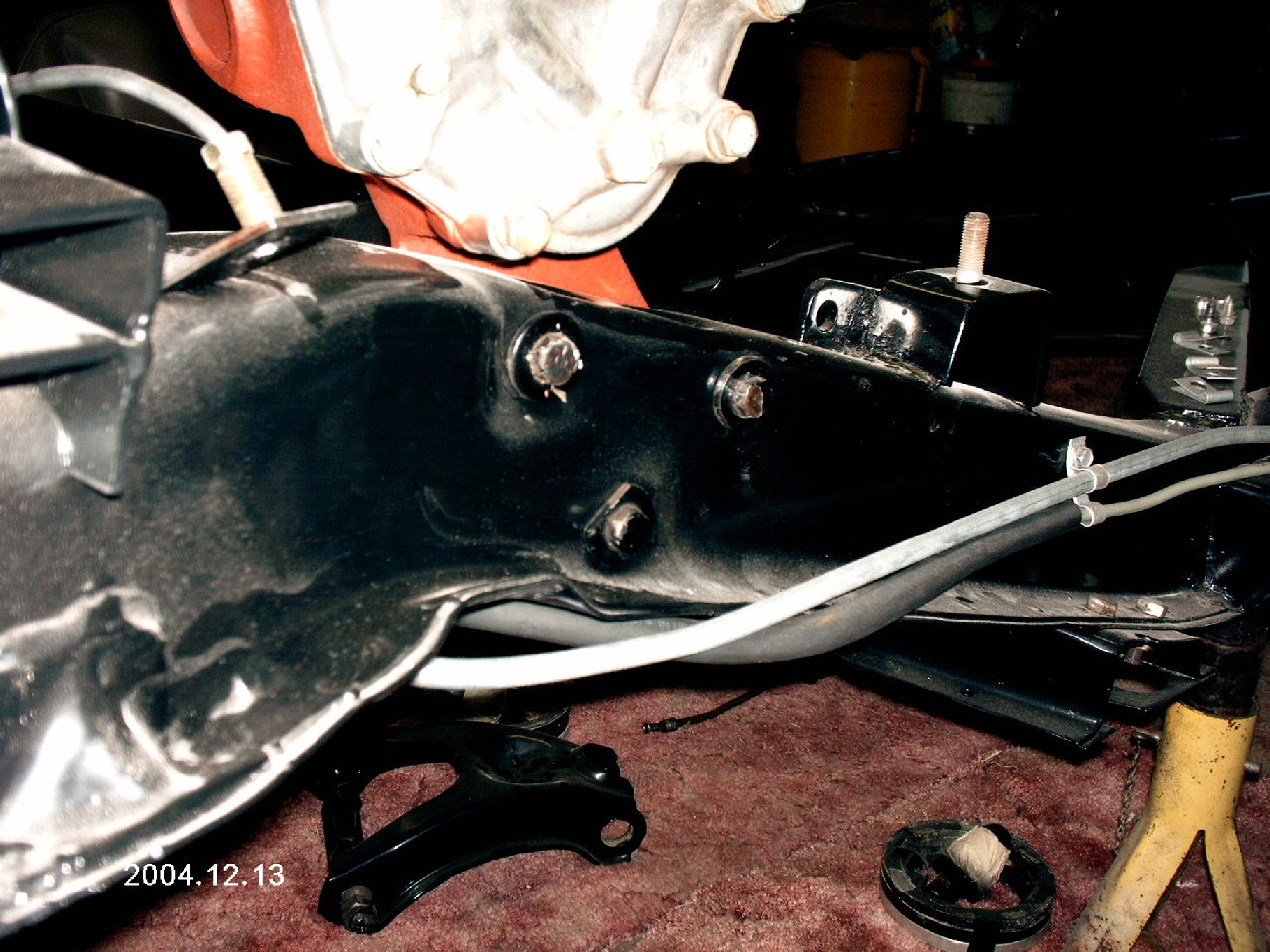

Here is a series of pictures to show you where the fuel and brake lines go on the Avanti.

Back to Top

What do I need to do to remove the body from chassis?

How to remove the body from the chassis

Remove the front and rear bumpers and brackets off of frame

Remove or disconnect gas tank hose above rear end.

Remove return hose left side inside rear tire front. Return line hose.

Remove master cylinder brake line

Disconnect steering column from steering box and loosen nuts under dash and pull steering column back.

Remove radiator and hoses

Disconnect emergency brake cable under car by left muffler.

Go in trunk, 1 bolt under spare tire

There is 1 bolt on each side at rear of frame thru trunk.

There are 5 on each side along hog troughs.

Go inside car in front at firewall and remove carpet pieces and find round metal plates

There is 1 on each side, remove plates and nuts off studs.

There are 2 bolts at front radiator saddle thru the frame.

Remove seatbelt eye-bolts inside off ‘X’ member behind front seats.

Now ready to lift body off.





Back to Top

What is the correct heads for the R-2 Avanti engines ?

There are a few heads that can be used on the R-2 Avanti engines.

Back to Top

What are the decals and their location on the Avanti?

Decals and placement on engine for Avanti

D3-001 United Dry Type, air cleaner, R-2 goes on body of air cleaner facing right fender so it can be read while standing next to the fender with hood open.

D1-091 STP Wrap-around goes around each oil breather cap with printing down.

D5-005 Anti-Freeze tag hangs on the overflow hose off of the Surge Tank.

D24-001 Supercharger goes over hole in the center housing by the dipstick. Covers and is centered on the hole and is read from the front of the car.

D3-007 Use Premium Gas goes on gas cap.

D10-001 Twin Traction Axle goes on rear end cover next to and left above the fill plug as viewed from the rear.

D9-001 Tire Warning goes on inside of glove box lid door centered on the flat part of the door below the depressed area where drinks can be set.

D6-009 Avanti Voltage Regulator goes on top of the voltage regulator indexed as indicated on decal.

D6-004 Battery Warning goes on fender inner panel next to battery up near hood edge centered between hold down brackets to be read from left side.



Back to Top
